Swiss Type Automatic Lathe Yantian Or Shekou Port in Guangdong Province China - - JSWAY
Product details of the swiss type automatic lathe
Product Specification
Price term: EXW FOB CIF
Nearest port: Nansha, Yantian or Shekou Port in Guangdong Province China
उत्पादन विवरण
swiss type automatic lathe has better tactile and visual feel. It has been tested by the harsh international first-class inspection standards. Guangdong JSWAY CNC Machine Tool Co., Ltd. is perceived as more vibrant and engaged generators of swiss type automatic lathe with commercial value than their counterparts.
6-axis Swiss lathe can move the cutting tool in six different directions simultaneously, allowing for intricate and precise machining operations. The six axes typically include X, Y, Z, as well as additional rotational axes for more versatile machining capabilities.

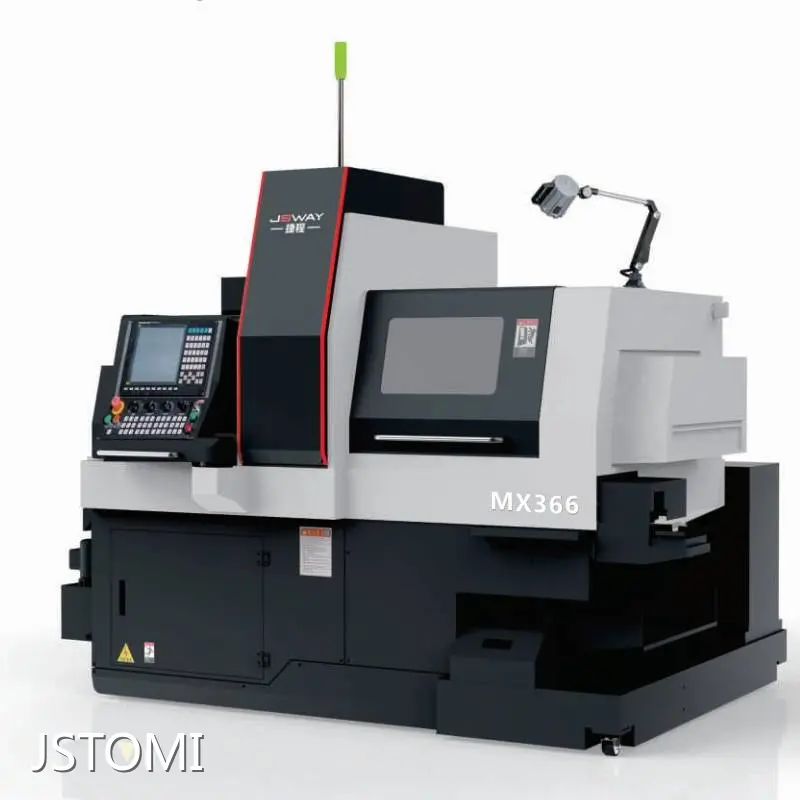

| Model No. | MX366 | |
| Structural type | Gantry type | |
| Operating System | FANUC or SYNTEC | |
| AXES | X1Y1Z1 + X2Y2Z2 | |
| Rapid traverse rate (M/min) | X axis 24, others 30 | |
| Processing ability | The diameter of the bar held by the spindle (MM) | 7-35 |
| Maximum drilling diameter of spindle (MM) | 12 | |
| Maximum tapping diameter of spindle (M) | M10 | |
| The diameter of the bar held by the sub-spindle (MM) | 7-35 | |
| Maximum drilling diameter of sub-spindle (MM) | 10 | |
| Maximum tapping diameter of sub-spindle (M) | M6 | |
| Maximum drilling diameter of side milling power head (MM) | 8 | |
| Maximum tapping diameter of side milling power head (M) | M6 | |
| Spindle | Spindle power (KW) |
FANUC 3.7
SYNTEC 5.5 |
| Sub-spindle power (KW) |
FANUC 3.7-5.5
SYNTEC 4.4 | |
| Maximum spindle speed (RMP) | 6000 | |
| Spindle table | Spindle linkage movable guide bush stroke (MM) | 230 |
| Max movement | Without guide bush (optional, MM) | 360 |
| Tools | Quantity of turning tools (pieces) | 16x16MM，6 pieces |
| Side power tool (pieces) | ER16，3 pieces + ER20，2 pieces | |
| Spindle end face tool (pieces) |
fixed drill tool ER16，5 pieces +
power tools ER16，3 pieces | |
| Sub-spindle end face tool (pieces) |
fixed tools ER16，8 pieces +
power tools ER16，4 pieces | |
| Sub-spindle side tool | power tools ER16，3把 | |
| Total quantity of tools | 34 | |
| Maximum speed of power head (RPM) | 5500 | |
| Others | Size（LWH, approximate, MM） | 2300x1890x1950 |
| Weight (approximate, KG) | 3800 | |
| Optional configuration | Thermal compensation function | Y |
| Automatic chip breaking function | Y | |
The 6-axis Swiss lathe can handle a wide range of materials, including metals, plastics, and composites, making it a versatile machining solution for various industries and applications.
6 axis swiss lathes often feature a sliding headstock design, allowing for the precise machining of long and slender workpieces. This design provides excellent support and stability during the machining process.
6-axis Swiss lathes are capable of high-speed machining, contributing to increased productivity and reduced cycle times, especially for small, intricate parts.
