Máquina-ferramenta Co. do CNC de Guangdong JSWAY, Ltd. desde 2004.
Swiss-style Lathe by Land by JSWAY
Product details of the Swiss-style lathe
Product Specification
Nearest port: Nansha, Yantian or Shekou Port in Guangdong Province China
Payment term: T/T, L/C
Опис производа
The advanced technology is integrated into the whole production process of JSWAY Swiss-style lathe. The product is tested on numerous quality parameters before supplying to patrons Guangdong JSWAY CNC Machine Tool Co., Ltd. has super Swiss-style lathe production line and modernized management.

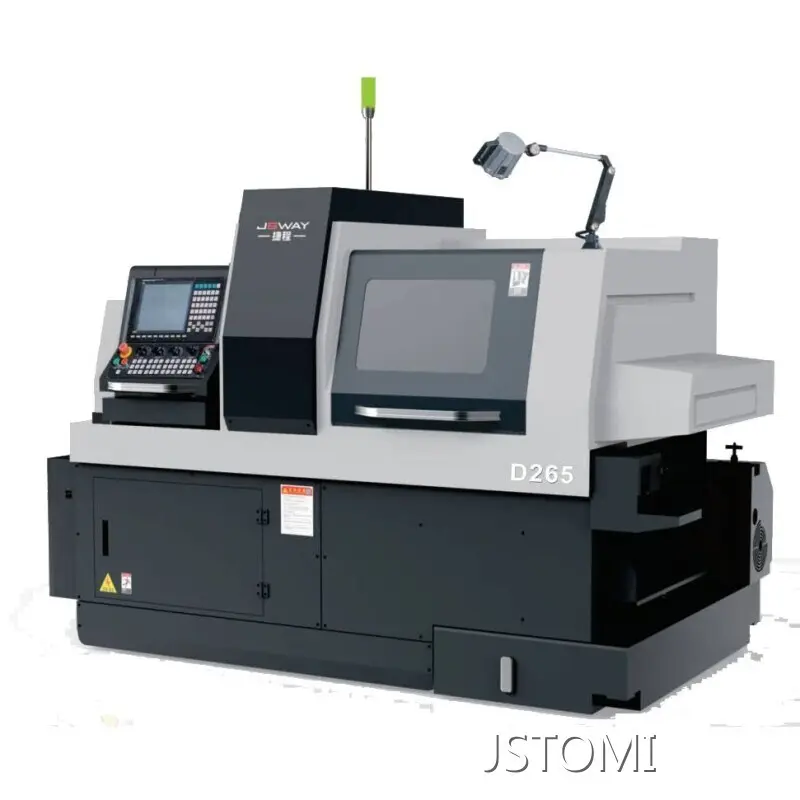

| Model No. | D265 | |
| Structural type | Horizontal tool type | |
| Operating System | FANUC or SYNTEC | |
| AXES | X1Y1Z1 + X2Z2 | |
| Rapid traverse rate (M/min) | X-axis 24, other axes 30 | |
| Processing ability | The diameter of the bar held by the spindle (MM) | 5-26 |
| Maximum drilling diameter of spindle (MM) | 10 | |
| Maximum tapping diameter of spindle (M) | M8 | |
| The diameter of the bar held by the sub-spindle (MM) | 5-26 | |
| Maximum drilling diameter of sub-spindle (MM) | 8 | |
| Maximum tapping diameter of sub-spindle (M) | M6 | |
| Maximum drilling diameter of side milling power head (MM) | 10 | |
| Maximum tapping diameter of side milling power head (M) | M8 | |
| Spindle | Spindle power (KW) |
FANUC 5.5
SNYTEC 8.2 |
| Maximum spindle speed (RMP) | 8000 | |
| Spindle table | Spindle linkage movable guide bush stroke (MM) | 220 |
| Max movement | Without guide bush (optional, MM) | 360 |
| Tools | Quantity of turning tools (pieces) | 16x16MM, 7 pieces |
| Side power tool (pieces) | ER20, 5 pieces | |
| Spindle end face tool (pieces) |
fixed tools ER16, 4 pieces +
power tools ER20, 3 pieces | |
| Sub-spindle end face tool (pieces) |
fixed tools ER16, 3 pieces +
power tools ER16, 3 pieces | |
| Sub-spindle side tool | N | |
| Total quantity of tools | 25 | |
| Maximum speed of power head (RPM) | 5500 | |
| Others | Size (LWH, approximate, MM) | 2700x1450x1800 |
| Тежина (approximate, KG) | 3500 | |
| Optional configuration | Thermal compensation function | Y |
| Automatic chip breaking function | Y | |
Company Advantage
• With a scientific management mode and strong production capacity, JSTOMI adopts standardized and large-scale production. Based on that, we ensure the high quality of products and meet the large-quantity needs of customers, and we could provide custom services for customers.
• JSTOMI<000000>#39;s high-quality talent team is an important human resource for JSTOMI. For one thing, they have the professional know-how and they are familiar with the principle, operation, and process of the equipment. For another thing, they have rich experience in practical maintenance operations.
• Our company's products are widely praised by domestic and foreign customers. We have a full coverage in the domestic market and the products are also exported to many countries and regions in Central Asia, Southeast Asia and others.
• JSTOMI was established in We closely follow the development trend as well as adhere to sustainable development in the machinery industry. We are now a professional and powerful manufacturer of machinery.
• JSTOMI answers all kinds of customer's questions with patience and provides valuable services, so that customers can feel respected and caring.
Contact JSTOMI for bulk order of electric equipment. We have a surprise for you.
