Product Descriptions

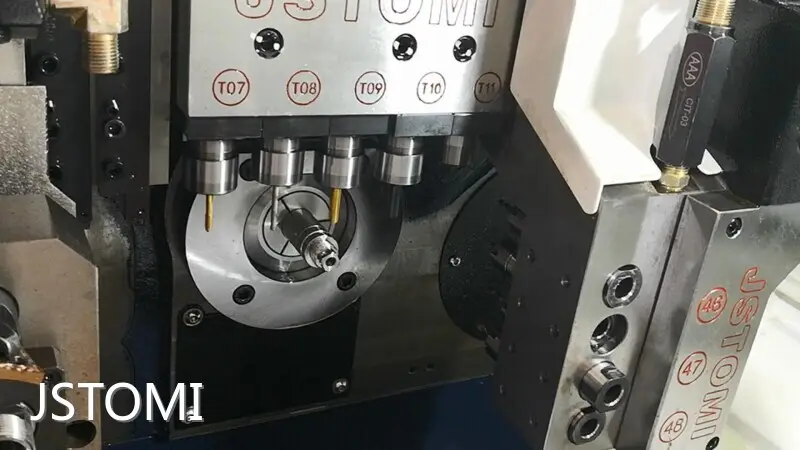

6-axis Swiss turning at an economical price This CNC Lathe is capable of simultaneous machining of complex parts and includes a back working Y-axis for additional capability Modular tool zones and live-tool capacity enhance the performance of this machine’s ability to cut parts in one set-up.
Premium 6-Axis Swiss Lathe Performance

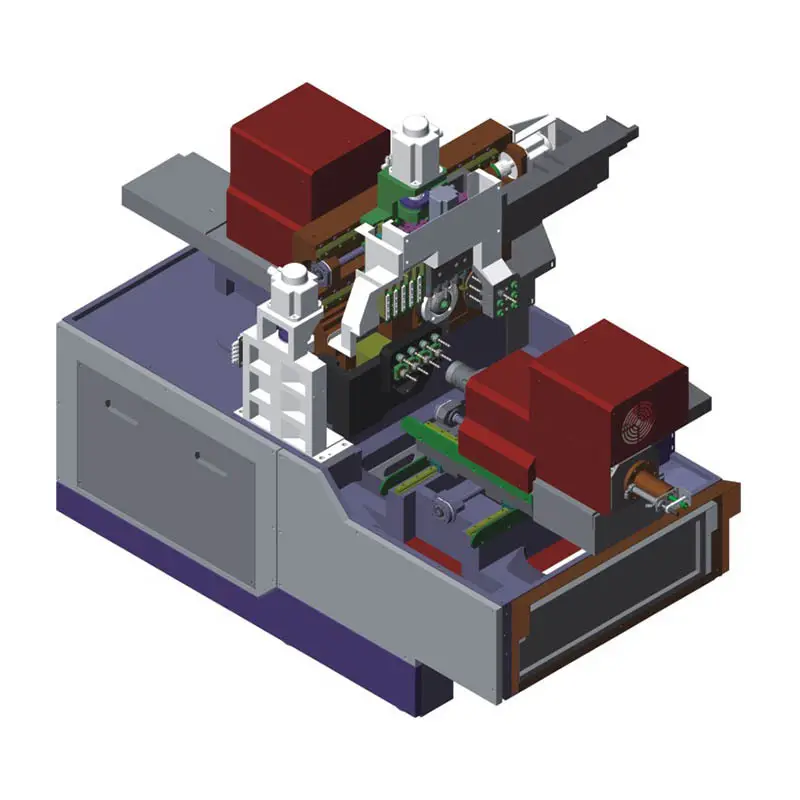

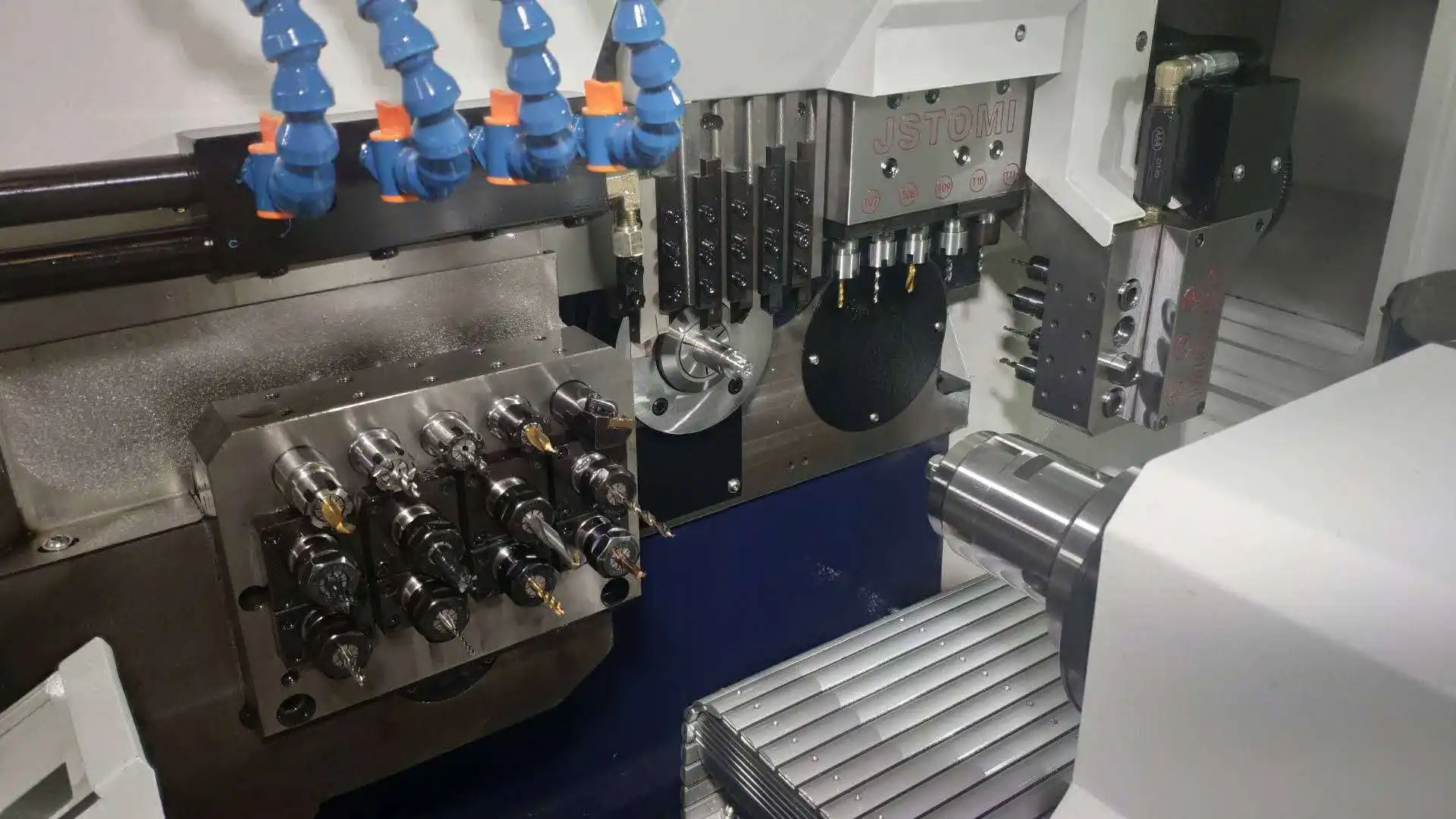

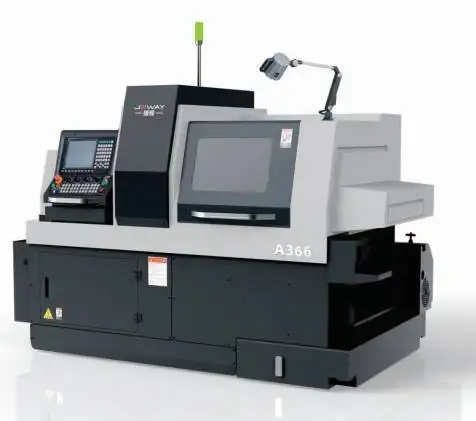

그만큼 6 axis swiss lathe A366 features a Y-axis tool post which allows you to machine complex parts using the main and back spindle simultaneously. Experience the flexibility of 6-axis control and the precision and accuracy of swiss turning at an affordable price.The 6 axis swiss lathe is suitable for variable volume production with a wide range of capabilities The S206-II’s modular tooling layout can feature up to 24 different live tools, delivering advanced capability and rapid changeover times.
Machine parameter
PARAMETER | |||
D366 | |||
CONTROLLER | System | Syntec | Syntec |
rapid speed | 36m/min(X:24m/min) | 36m/min(X:24m/min) | |
PROCESSING RANGE
| spindle clamping diameter | 7-35mm | 7-35mm |
one time feeding material length | 170mm | 170mm | |
spindle max drilling diameter | 14mm | 14mm | |
spindle max tapping diameter | M8*P1.25 | M8*P1.25 | |
Max lateral drilling hole diameter | 10mm | 10mm | |
SPINDLE | S1 spindle power | 4.4KW | 4.4KW |
S1 max speed | 6000분당 회전수 | 6000분당 회전수 | |
C1 indexing | 0.015° | 0.015° | |
spindle bore | 36mm | 36mm | |
SPINDLE TABLE STOKE | fixed sleeve | 170mm | 170mm |
guide bush | 170mm | 170mm | |
TOOLS | cutting tools | 6 tools 12*12 or 5 tool 16*16 (optional) | 6 tools 12*12 or 5 tools 16*16(optional) |
S3 lateral power tools | 5 ER16 living tool | 5 ER16 living tool | |
S3 lateral power tools Max speed. | 6000분당 회전수 | 6000분당 회전수 | |
S3 motor power | 1.0KW | 1.0KW | |
S5 end face tools | / | 5 fixed ER16+3 movavle(optional) | |
S5 max drilling diameter | / | 10mm | |
S5 Max tapping diameter | / | M8*P1.25 | |
S5 lateral tools Max speed | / | 6000분당 회전수 | |
S5 motor power | / | 1.0KW | |
POWER | Y1 Z1 servo motor | 0.8KW | 0.8KW |
X1 servo motor | 1.3KW | 1.3KW | |
DIMENSION | Size( L x W x H ) | 1900*1300*1740mm | 1900*1300*1740mm |
N.W |
| 3450KG | 3500KG |
