Máquina-ferramenta Co. do CNC de Guangdong JSWAY, Ltd. desde 2004.

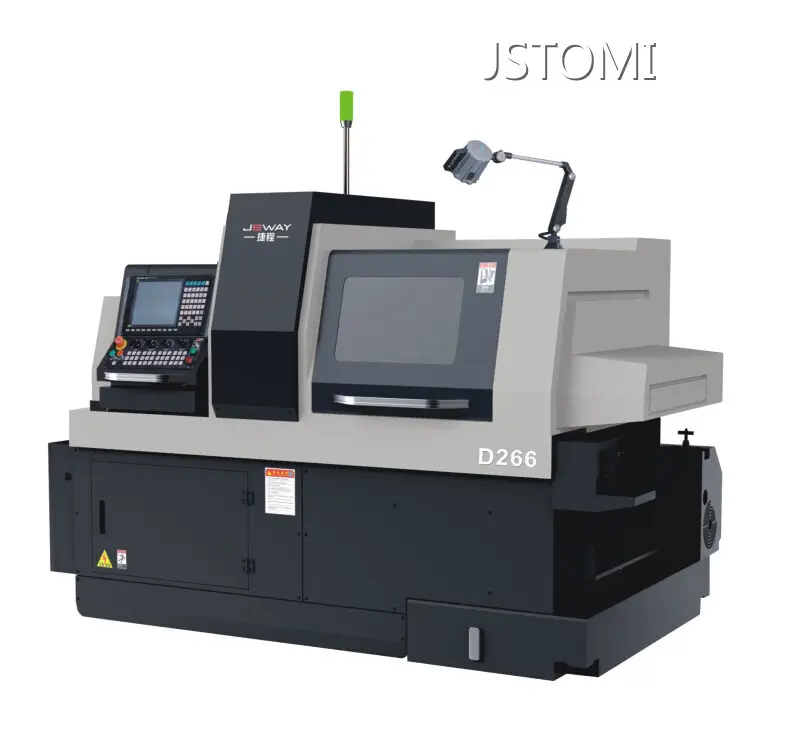

Swiss Cnc Nansha by JSWAY
Product details of the swiss cnc
Product Specification
Nearest port: Nansha, Yantian or Shekou Port in Guangdong Province China
Payment term: T/T L/C
Product Information
swiss cnc is made by high quality materials. The swiss cnc is very convenient and easy to handle for its high performance. We have kept JSWAY more competitive in the world market and promote technology of swiss cnc to a fast development.
| Model No. | D266 | |
| Structural type | Horizontal tool type | |
| Operating System | FANUC or SYNTEC | |
| AXES | X1Y1Z1 + X2Y2Z2 | |
| Rapid traverse rate (M/min) | X-axis 24, other axes 30 | |
| Processing ability | The diameter of the bar held by the spindle (MM) | 5-26 |
| Maximum drilling diameter of spindle (MM) | 10 | |
| Maximum tapping diameter of spindle (M) | M8 | |
| The diameter of the bar held by the sub-spindle (MM) | 5-26 | |
| Maximum drilling diameter of sub-spindle (MM) | 8 | |
| Maximum tapping diameter of sub-spindle (M) | M6 | |
| Maximum drilling diameter of side milling power head (MM) | 10 | |
| Maximum tapping diameter of side milling power head (M) | M8 | |
| Spindle | Spindle power (KW) |
FANUC 5.5
SNYTEC 8.2 |
| Maximum spindle speed (RMP) | 8000 | |
| Spindle table | Spindle linkage movable guide bush stroke (MM) | 220 |
| Max movement | Without guide bush (optional, MM) | 360 |
| Tools | Quantity of turning tools (pieces) | 16x16MM, 7 pieces |
| Side power tool (pieces) | ER20, 5 pieces | |
| Spindle end face tool (pieces) |
fixed tools ER16, 4 pieces +
power tools ER20, 3 pieces | |
| Sub-spindle end face tool (pieces) |
fixed tools ER16, 5 pieces +
power tools ER16, 8 pieces | |
| Sub-spindle side tool | N | |
| Total quantity of tools | 32 | |
| Maximum speed of power head (RPM) | 5500 | |
| Others | Size (LWH, approximate, MM) | 2700x1450x1800 |
| 무게 (approximate, KG) | 3700 | |
| Optional configuration | Thermal compensation function | Y |
| Automatic chip breaking function | Y | |
Company Feature
• JSTOMI's mechanical equipment has reasonable design, compact structure and stable performance. Besides, our product is easy and convenient to be operated and installed.
• JSTOMI gathers a group of experienced technical and management talents in R&D, manufacturing, and after-sales service. We can provide high-quality custom services according to the needs of each customer.
• Our company always insists on the idea that service comes first. We are committed to fulfilling customers' needs for service by providing the most cost-effective solutions in logistics service.
• Unique geographical advantages and abundant social resources create good conditions for JSTOMI's development.
• Established in JSTOMI has a development history of years. We accumulate rich professional know-how and experience in the machinery production.
Dear customer, welcome to visit our site! If you are interested in JSTOMI's CNC machining,CNC Lathe Machine,CNC Lathe Supplier, please leave your contact information. We will contact you as soon as possible.
