Máquina-ferramenta Co. do CNC de Guangdong JSWAY, Ltd. desde 2004.
Cnc Machining Quote JSWAY by JSWAY
Product details of the cnc machining quote
Product Specification
Price term: EXW FOB CIF
نظرة عامة على المنتج
cnc machining quote is manufactured based on good materials and advanced production technology. It is stable in performance, excellent in quality, high in durability, and good in safety. JSWAY cnc machining quote is carefully crafted by the skillful workers. The products meet the quality standards of many countries and regions. cnc machining quote is commonly used in many industries including food and beverage, pharmaceutical, daily necessities, hotel supplies, metal materials, agriculture, chemicals, electronics, and machinery. Guangdong JSWAY CNC Machine Tool Co., Ltd. is sophisticated in the field with decades years of experience.
معلومات المنتج
Our cnc machining quote is more competitive than similar products, as shown in the following aspects.

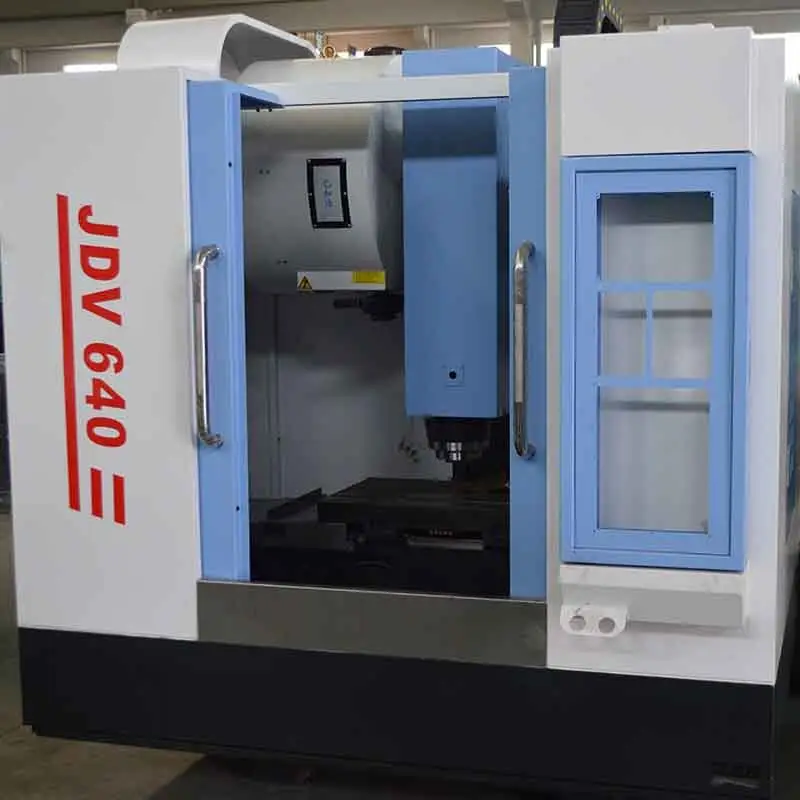

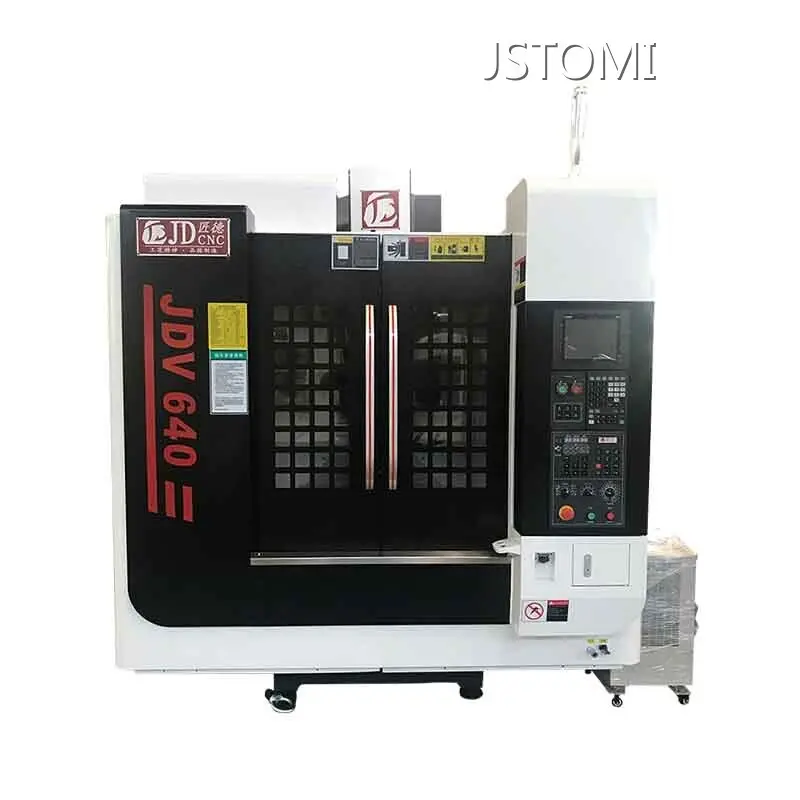

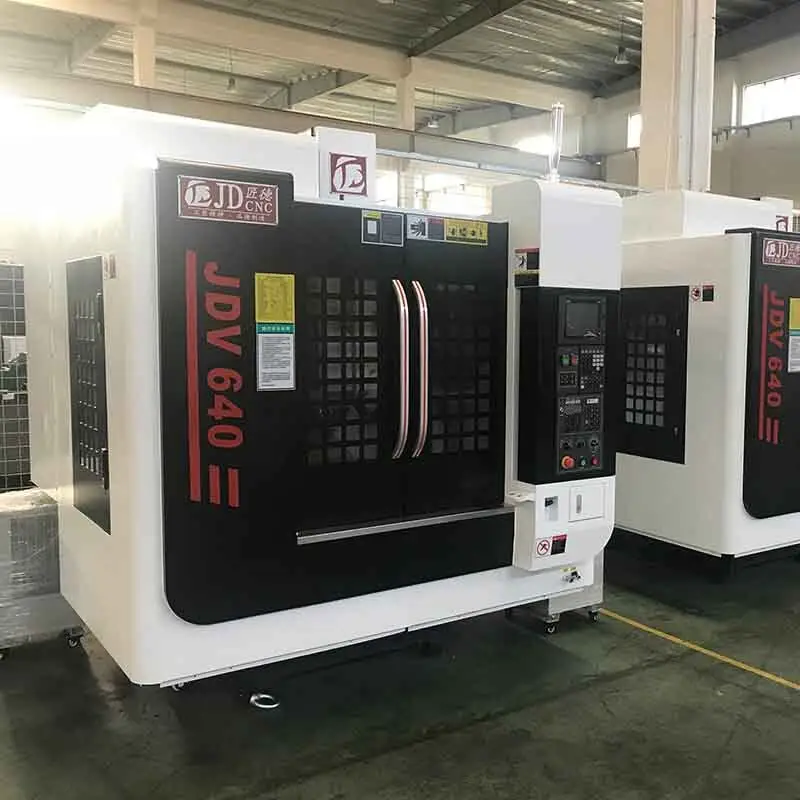

A high-speed vertical CNC machining center is a cutting-edge piece of equipment that revolutionizes the efficiency and precision in manufacturing industries. This sophisticated machine tool combines advanced technology with vertical spindle orientation, enabling it to perform multiple complex operations rapidly. The high speed at which this machinery operates allows for quick material removal, significantly reducing production cycle times. With its enhanced rigidity and stability, this machining center guarantees exceptional accuracy and surface finish on various workpieces with intricate details, ensuring superior quality output. Its versatility enables seamless transition between various milling processes such as drilling, tapping, and contouring without compromising productivity or quality. Equipped with computer numerical control (CNC) technology, operators can program the machine precisely to execute intricate designs or replicate existing components effortlessly. The high-speed VMC machining center has truly become an indispensable asset in modern manufacturing facilities due to its ability to optimize performance while maintaining meticulous craftsmanship at an accelerated pace.
Machine parameter
PARAMETER | |||
| MODEL | UNIT | JDV850 | |
CONTROLLER | NC | SET | MITSUBICHI/FANUC |
| TOTAL AXIS | AXIS | 3 | |
TABLE | TABLE SIZE | MM | 1000*500 |
| TABLE LOAD | KG | 600 | |
| T-SLOT | MM | 5-18*100 | |
TRAVEL | X AXIS | MM | 800 |
| Y AXIS | MM | 500 | |
| Z AXIS | MM | 500 | |
SPINDLE | SPINDLE TAPPER | MM | BT40 |
| MAX.SPINDLE SPEED | RPM/MIN | 10000/12000/15000 | |
| SPINDLE DRIVEN TYPE | TYPE | belt type/direct connect | |
| SPINDLE CENTER TO MACHINE SPINE | MM | 570 | |
| SPINDLE END FACE TO TABLE | MM | 120-620 | |
GUIDE RAIL | X/Y/Z AXIS BALL SCREW | MM | 3616/3616/3616 |
| X/Y/Z AXIS GUIDE RAIL | linear guide rail | ||
MOTOR | X/Y/Z AXIS MOTOR CONNECT TYPE | TYPE | direct |
| SPINDLE MOTOR | KW | 7.5/11 | |
| X/Y/Z AXIS SERVO MOTOR | KW | 3/3/3 | |
| COOLANT PUMP MOTOR | W | 750W*2 | |
FEEDING RATE | X/Y/Z WORKING RATE | M/MIN | 10/10/10 |
| X/Y/Z RAPID SPEED | M/MIN | 48/48/48 | |
POWER/AIR PRESSURE | AIR PRESSURE | KG/CM² | 6kg/cm² |
| POWER SUPPLY | kva | 20kva | |
ACCURACY | POSITIONING ACCURACY | MM | ±0.005/300 |
| REPOSITIONING ACCURACY | MM | ±0.005/300 | |
SPEC | NET WEIGHT | T | 5.2 |
| DEMENSION | MM | 2500*2650*3000 | |
Company Information
Guangdong JSWAY CNC Machine Tool Co., Ltd. (JSTOMI) is a professional supplier in zhong shan. We mainly supply CNC machining,CNC Lathe Machine,CNC Lathe Supplier. After years of development, JSTOMI has accumulated rich industry experience in machinery manufacturing. Based on that, we successfully created the brand called JSWAY. JSTOMI is devoted to provides quality services to meet the needs of customers. Our company formed an excellent R<000000>D and design team. According to customers' needs, we could quickly design the best solution and provide quality custom services for customers.
If you are interested in JSTOMI's CNC machining,CNC Lathe Machine,CNC Lathe Supplier, please contact us quickly. We will always provide sincere service for you!
