Product details of the cnc machine center
د محصول مشخصات
Payment term: T/T L/C30\% deposite
Quick Detail
JSTOMI's mechanical equipment has reasonable and novel design, compact structure and stable performance. In addition to the easy operation, it is also convenient to be installed. With all the features, our product is well received by users. The whole production of JSWAY cnc machine center is completed by the combination of sophisticated equipment and professional staff. The team of JSWAY has been working orderly to provide the highest quality product. cnc machine center is produced with exquisite quality.
د محصول پیژندنه
With a focus on details, JSTOMI strives to create high-quality cnc machine center.
د VMC vertical machining center is a versatile and rugged machine that handles complex machining operations. The advanced models of CNC machining centers feature sophisticated technology, which allows it to machine parts with the tightest tolerances. Furthermore, it enhances uptime and is typically customizable to meet your part’s specifications. CNC machining centers have high speed and deliver excellent quality.
Machine parameter
PARAMETER | |||

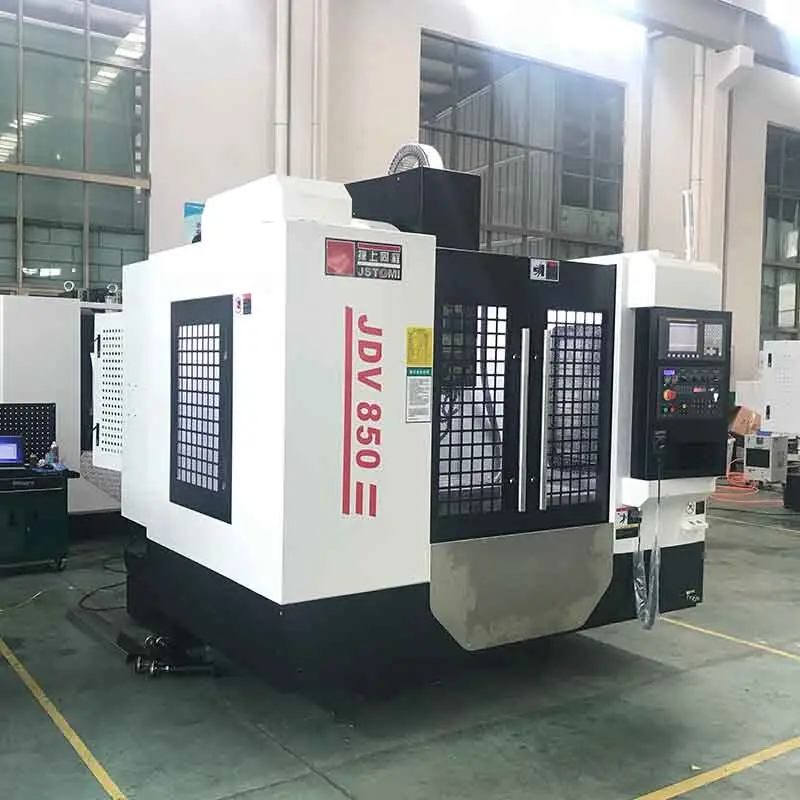

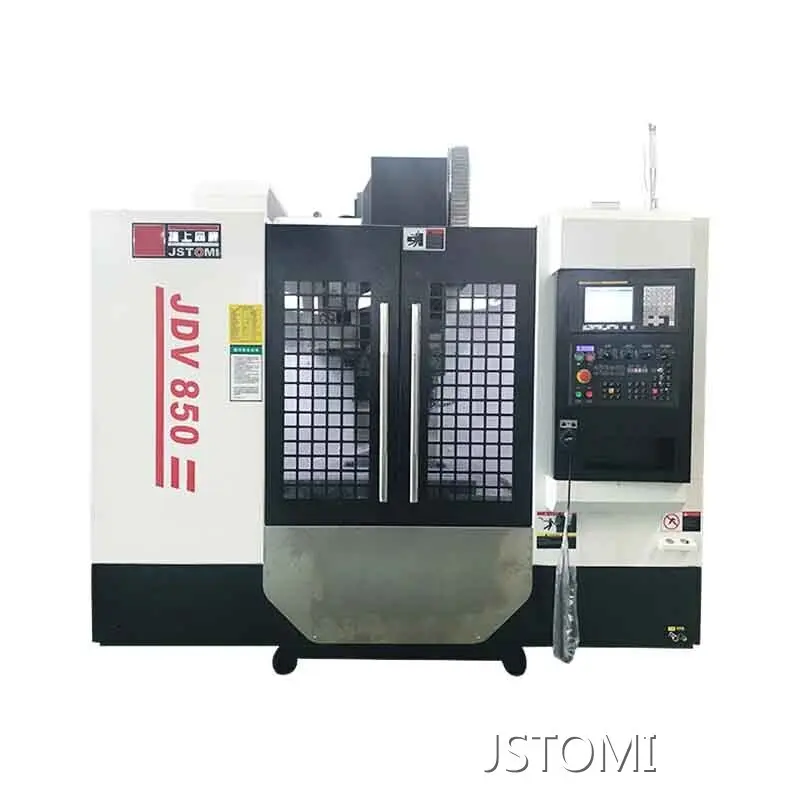

| MODEL | UNIT | JDV850 | |
| CONTROLLER | NC | SET | MITSUBICHI/FANUC |
| TOTAL AXIS | AXIS | 3 | |
| TABLE | TABLE SIZE | MM | 1000*500 |
| TABLE LOAD | KG | 600 | |
| T-SLOT | MM | 5-18*100 | |
| TRAVEL | X AXIS | MM | 800 |
| Y AXIS | MM | 500 | |
| Z AXIS | MM | 500 | |
| SPINDLE | SPINDLE TAPPER | MM | BT40 |
| MAX.SPINDLE SPEED | RPM/MIN | 10000/12000/15000 | |
| SPINDLE DRIVEN TYPE | TYPE | belt type/direct connect | |
| SPINDLE CENTER TO MACHINE SPINE | MM | 570 | |
| SPINDLE END FACE TO TABLE | MM | 120-620 | |
| GUIDE RAIL | X/Y/Z AXIS BALL SCREW | MM | 3616/3616/3616 |
| X/Y/Z AXIS GUIDE RAIL | linear guide rail | ||
| MOTOR | X/Y/Z AXIS MOTOR CONNECT TYPE | TYPE | direct |
| SPINDLE MOTOR | KW | 7.5/11 | |
| X/Y/Z AXIS SERVO MOTOR | KW | 3/3/3 | |
| COOLANT PUMP MOTOR | W | 750W*2 | |
| FEEDING RATE | X/Y/Z WORKING RATE | M/MIN | 10/10/10 |
| X/Y/Z RAPID SPEED | M/MIN | 48/48/48 | |
| POWER/AIR PRESSURE | AIR PRESSURE | KG/CM² | 6kg/cm² |
| POWER SUPPLY | kva | 20kva | |
| ACCURACY | POSITIONING ACCURACY | MM | ±0.005/300 |
| REPOSITIONING ACCURACY | MM | ±0.005/300 | |
| SPEC | NET WEIGHT | T | 5.2 |
| DEMENSION | MM | 2500*2650*3000 | |
Standard Accessory
◪ Rigidity tapping
◪ Double working lamp
◪ Spindle nose air blow
◪ Auto lubrication
◪ Heat exchange for eletrical cabinet
◪ Warning lamp
◪ Anchor bolt
◪ Full cover
◪ Coolant water system
◪ Water tank and chips tank
◪ Air gun
◪ Cleanning water gun
◪ Tool box
◪ Manual
