Product details of the 5 axis cnc milling machine
Product Specification
Price term: EXW FOB CIF
Payment term: T/T, L/C
Опис производа
5 axis cnc milling machine also has aesthetic advantages. JSWAY makes targeted improvements, preventing quality problems. Guangdong JSWAY CNC Machine Tool Co., Ltd. focuses on building relationships and providing the best customer service possible.
Multi-function lathe
Full functions: carving, turning, milling, drilling, and tapping
Complicated components (work piece) could be done in one go.

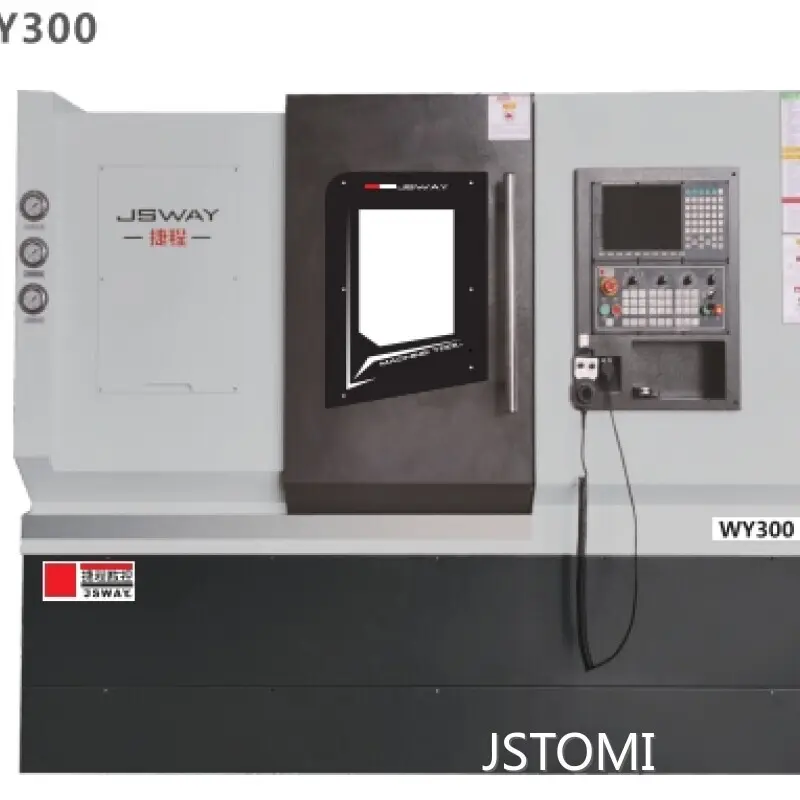

| Model No. | WY300 | |
| Machine | Interpolation Y power turret + fixed power turret, dual spindles | |
| AXES | X1/YS1/Z1, X2/YS2/Z2 | |
| Operating system | SYNTEC 220TB or FANUC OI-TFPLUS | |
| Processing ability | Maximum bar diameter of spindle (MM) | 45 |
| Maximum bar diameter of sub-spindle (MM) | N | |
| Maximum rotation diameter (MM) | 320 | |
| Maximum additive length (MM) | 200 | |
| Maximum processing diameter (MM) | 220 | |
| X-axis maximum travel (MM) | 180, 320 | |
| YS axis Maximum travel (MM) | +-50 | |
| Z-axis maximum stroke (MM) | 340, 320 | |
| X/Z axis fastest movement rate (M/MIN) | 30 | |
| Прецизност | Repeat positioning accuracy (MM) | 0.005 |
| Мотор | Spindle power (KW) | 11 |
| Spindle speed (RPM) | ||
| Sub-spindle power (KW) | 11 | |
| X-axis servo motor (KW) | 1.8 | |
| Y-axis servo motor (KW) | 1.8 | |
| Z-axis servo motor (KW) | 1.8 | |
| Tools | Quantity (pieces) | |
| Others | Total machine power (approximate, KW) | |
| Spindle: | ||
| Cylinder: JSWAY customized (inches) | ||
| Demension (LWH, approximate, MM) | 2500x2450x2050 | |
| Тежина (approximate, KG) | 4800 | |
Company Advantage
• Our products have been exported to many foreign countries. They have occupied a certain proportion of the local market.
• JSTOMI's machinery is deeply favored by most customers for the following advantages: reasonable and novel design, compact structure, stable performance, and easy operation and installation.
• JSTOMI focuses on interacting with customers to know well their needs and provides them with efficient pre-sales and after-sales services.
• JSTOMI is located in the area with traffic convenience, which is good for timely delivery of the products.
• JSTOMI carries out standardized production based on the advanced production equipment and complete quality control equipment. We guarantee reliable quality, sufficient supply, and efficient delivery. We are able to provide quality custom services.
If you have any interest in JSTOMI's CNC machining,CNC Lathe Machine,CNC Lathe Supplier, order now then you can enjoy discounts!
